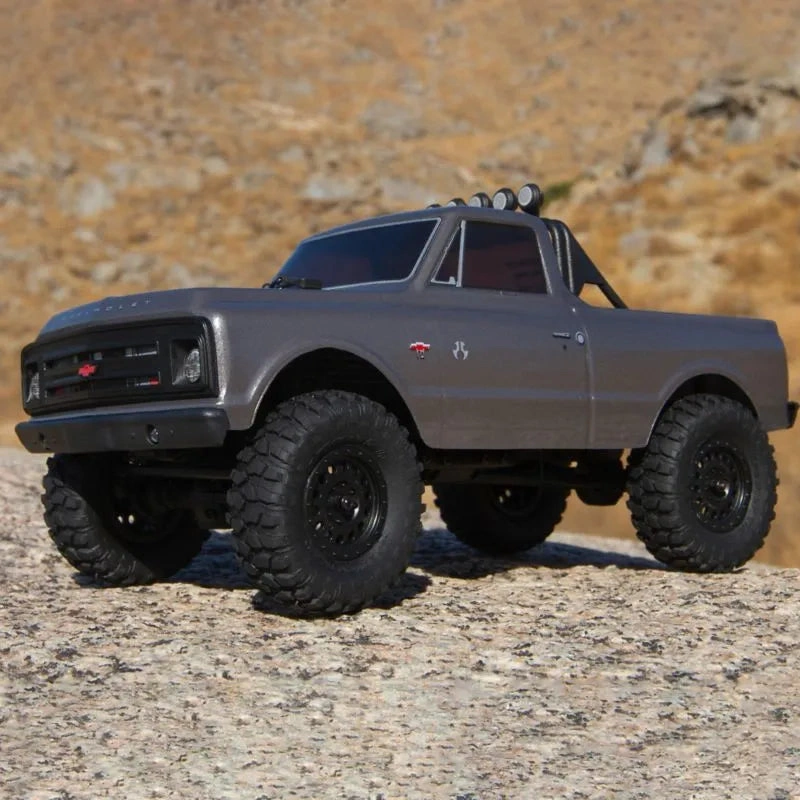

The detailed, ready-to-run 1967 Chevrolet C10 Truck is the latest model in the popular SCX24™ series from Axial® Racing. Its compact, versatile 1/24 scale size opens up almost any environment to spur-of-the-moment RC crawling expeditions. When it’s time for a break at work, set up an obstacle course with items on your desk for the SCX24™ Chevrolet C10 Truck to negotiate. Any room at home can also become the setting for exciting feats and contests. If you’d rather run outdoors, go for it! Collect some twigs and marble-size rocks, dig a few holes, and soon you’ll have a challenging trail for fresh air adventuring. Your truck’s water-resistant electronics save you from having to worry about wet track conditions when you crawl.
With its realistic steel chassis frame rails, steel front and rear axles, and steel dogbones, this model has the strength to deliver Axial®-caliber crawling performance even in 1/24 scale. It’s designed to keep right on running through rough trails and tough climbs. The SCX24™ 1967 Chevrolet C10 comes ready-to-run with all of the electronics, transmitter, receiver, servos, motor, ESC, batteries and charger included.
What’s in the Box?
Axial® AX-4 2.4GHz Radio System
Axial® AS-1 Servo
Axial® AE-6 ESC/Receiver Combo
USB Charger (DYNC1062)
Dynamite® 88T 030 Brushed Electric Motor
Dynamite® 350mAh 2S LiPo 7.4V Battery Pack (DYNB0012)
4 “AA” Batteries for the Transmitter

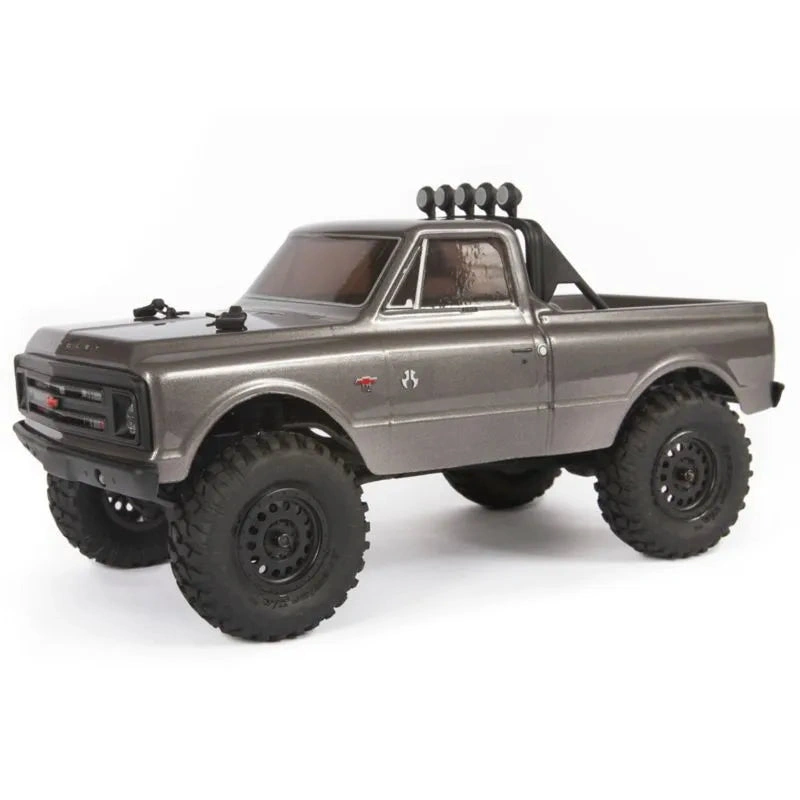

Axial® designers earn an A+ for merging convenience with potent crawling capabilities in the fully assembled, 1/24 scale SCX24™ 1967 Chevrolet C10 4WD. It’s the perfect micro truck for taking RC with you anywhere. All required on-board electronics are included — receiver, ESC, motor, servos and LiPo drive battery. They’re topped off by a realistic, finished 1967 Chevrolet C10 Truck scale body. Rounding out the RTR package is an Axial® 2.4GHz transmitter complete with AA batteries and a USB charger to keep your LiPo powered up and ready for action.
No matter where you are, the Axial® SCX24™ 1967 Chevrolet C10 Truck 4WD instantly makes it the ideal setting for RC crawling expeditions. Equally, at home on creative indoor trails and demanding outdoor terrain, this truck is eager for adventure almost anywhere — its 1/24 scale SCX24™ chassis proves that BIG fun comes in any size.
Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Even at this small scale, the combination of coil-over shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you expect from Axial®. Worm gears on the axles increase ground clearance, while realistic steel frame rails stand up to hard knocks. For quick battery access, just remove two clips to tilt back the body. You can change the battery or check out other on-board components with barely a break in the action.
Licensed 1:1 Method wheels and BF Goodrich tyres provide the toughness and tread to tackle off-road challenges — and the freedom to face them down on-road, too. Enjoy expeditions anywhere in micro scale, with the Axial® SCX24™ 1967 Chevrolet C10 Truck 4WD.
WORM GEARS
Worm drive gears are used to deliver power to the front and rear axles and create additional ground clearance.

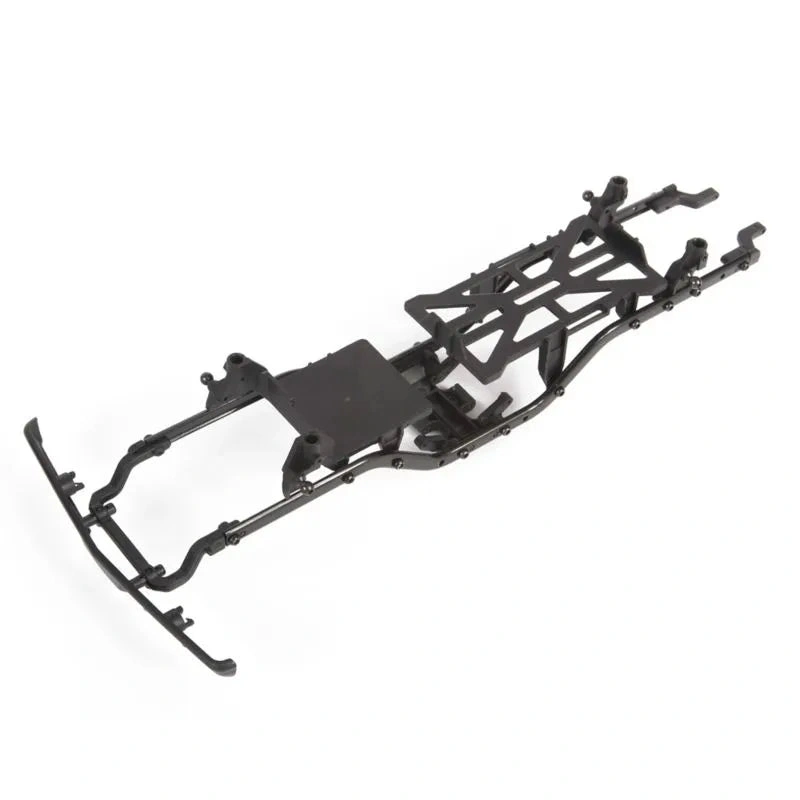

STEEL FRAME RAILS
Just like the 1/10 scale SCX10™ platform, the SCX24™ chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.
FRONT AND REAR SOLID AXLES
The front and rear axles consist of a two-piece, moulded plastic solid axle design. For optimal handling, the SCX24™ suspension uses a three-link front and four-link rear setup.
DURABLE STEEL AXLES
Steel front and rear axles, front stub axles along with steel dogbones provide strength and durability to keep you running during tough climbs and rough trails.
SPLINED DRIVESHAFTS
The front and rear driveshafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.
COILOVER SHOCK ABSORBERS
Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links deliver the crawling performance you expect from Axial®.
- Completion Level
- Ready-to-Run
- Scale
- 1/24
- Length
- 8.4 in (215mm)
- Width
- 3.9 in (99.5mm)
- Height
- 4.4 in (114.6mm)
- Ground Clearance
- 1.06 in (27mm)
- Wheelbase
- 5.2 in (133.2mm)
- Track
- 3.9 in (99.5mm)
- Front Track
- 3.9 in (99.5mm)
- Rear Track
- 3.9 in (99.5mm)
- Chassis
- Stamped Steel Rails
- Drivetrain
- 4WD
- Differential
- Worm Gear 16T/4T
- Shock Type
- Coil-over .9-1.3 in (24-33.4mm)
- Wheel Type
- Black Plastic
- Wheel Diameter
- 1.0 in (26mm)
- Wheel Width
- .48 in (12.4mm)
- Tyre Tread
- Nitto Trail Grappler M/T
- Tyre Diameter
- 1.88 in (48mm)
- Motor Type
- Brushed
- Motor Size
- 180
- Engine Size
- 88T
- Pinion
- 10T
- Spur Gear
- 55T
- Speed Control Included
- Y
- Radio
- Axial 2.4GHz, 2-Channel
- Servos Included
- Yes
- Batteries
- 7.4V 350mAh 30C LiPo
- Charger
- USB LiPo
- Body
- Axial® Chevrolet C10 Pickup
- Ball Bearings
- Full
- Experience Level
- Beginner
- Recommended Environment
- All-Terrain
- Is Assembly Required
- No
